LATHE GUARDS

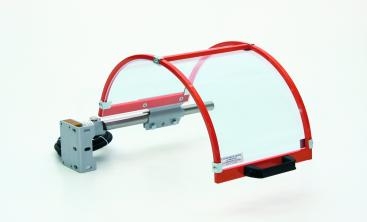

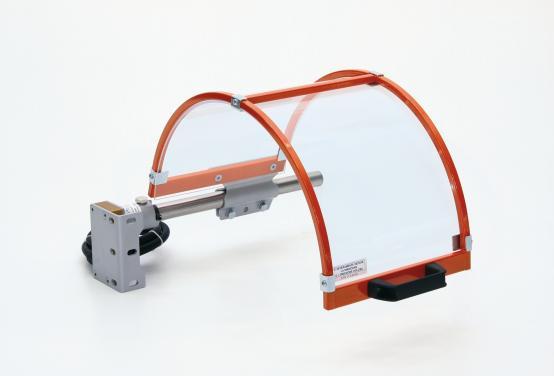

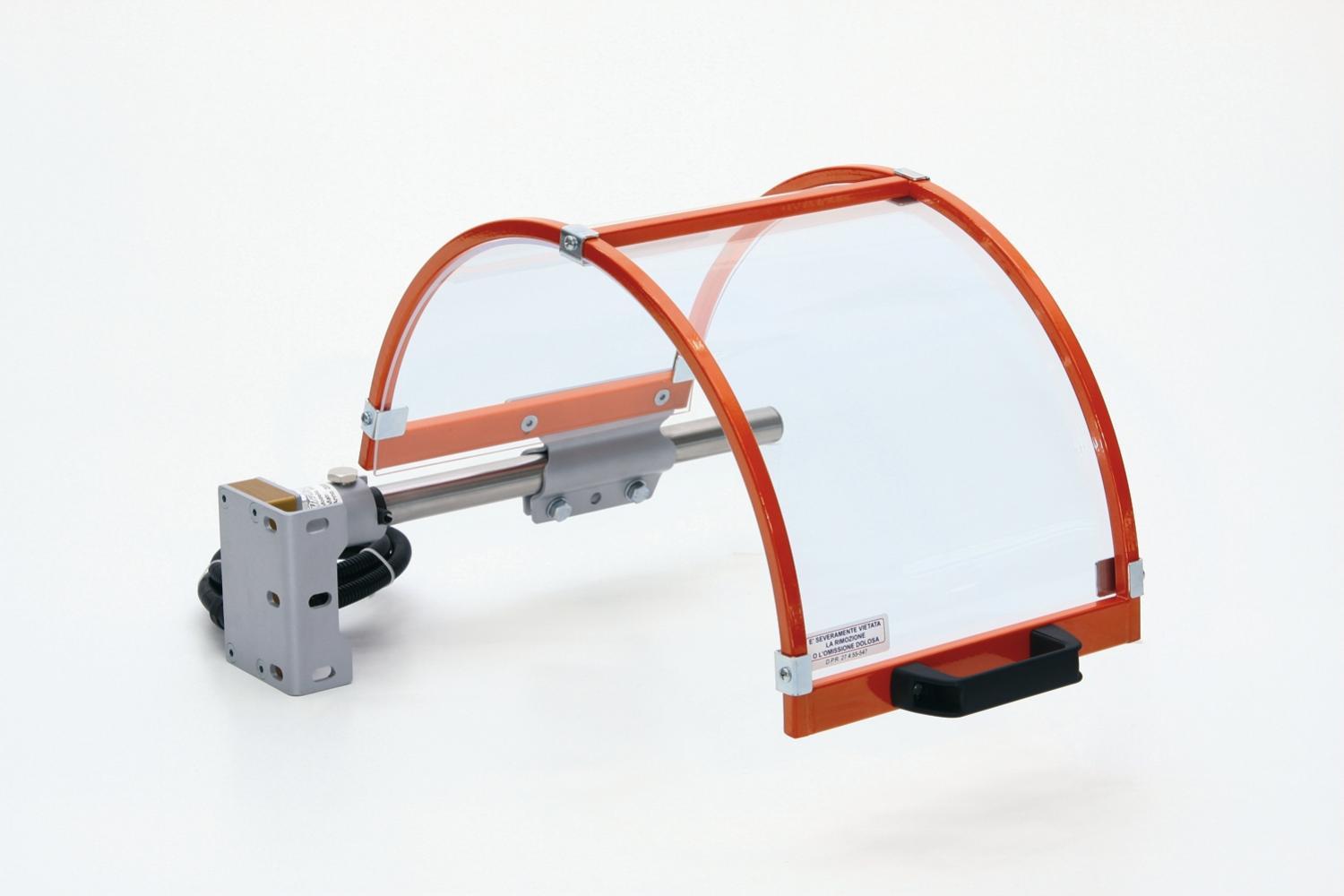

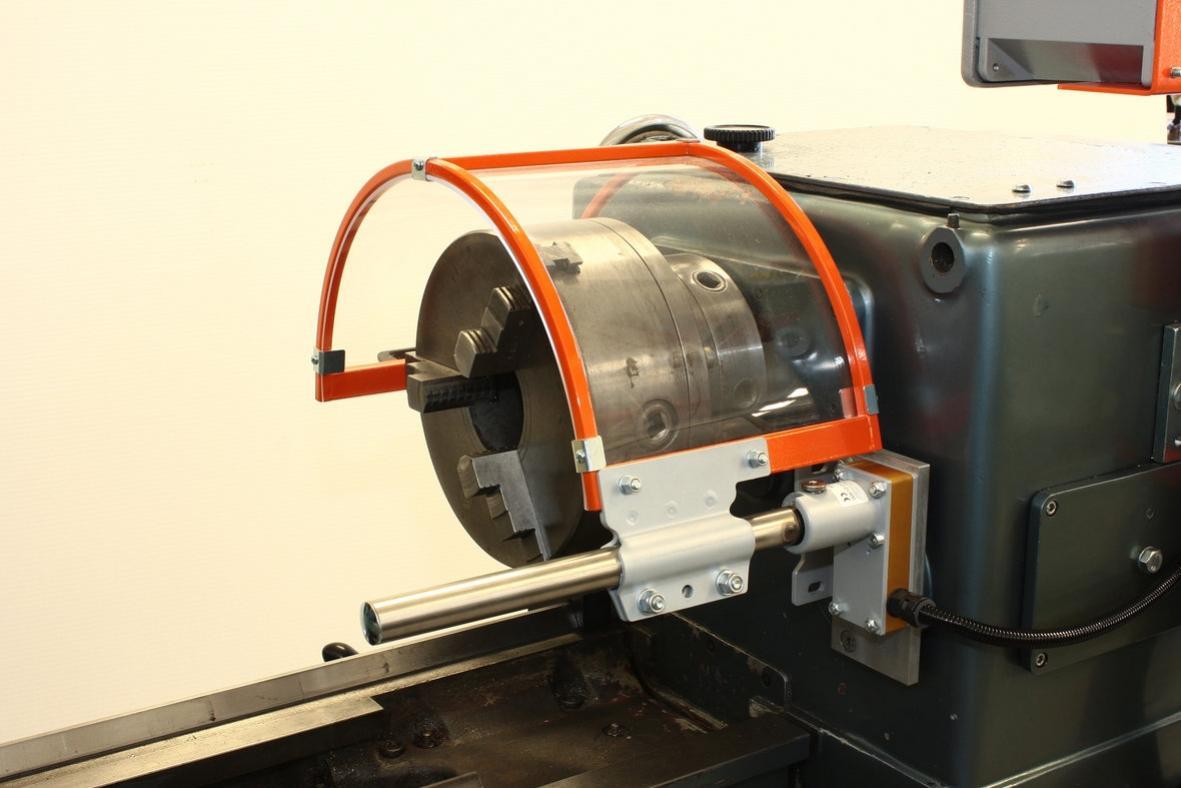

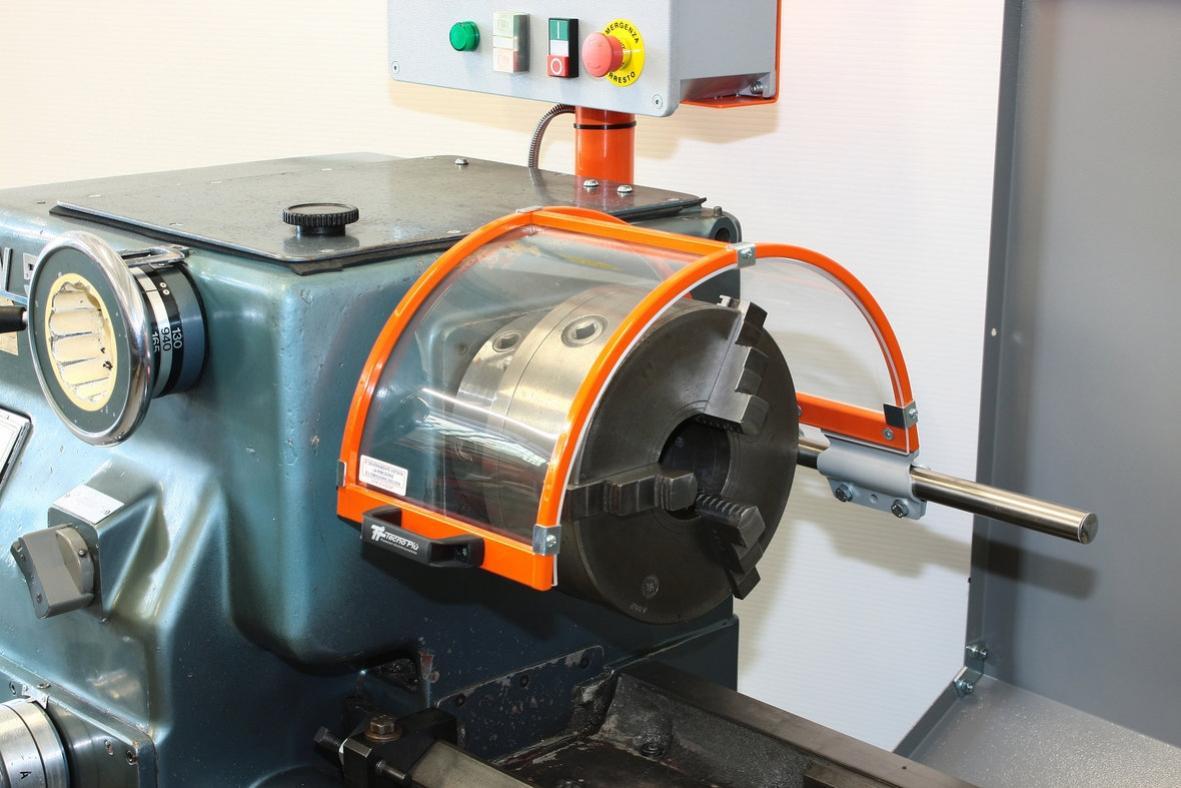

  • The PTO 01 lathe chuck guard protects the operator from contact with the upper part of the chuck and from coolant spray.
  •  Can be attached to the base from the front or the side
  •  We can tailor make brackets, mounts and modify standard guards as required.
  • Equipped with a steel and polycarbonate semicircular shield.
  • Top quality polycarbonate build ensuring resistance to high impact and excellent visibility.
  • Adjustable for a close fit to the head stock.
  •  Complete with safety micro switch conforming to EN 1088. The micro switch will stop the machine from operating when the guard is in the open position.
  • We can guarantee our "Next generation" standard machine guards do not disrupt the operators workflow whilst maintaining maximum safety at all times.
  •  All "Next Generation" Machine guards are in conformance with P.U.W.E.R (1998) and come with a certificate of conformity.

**We also accept telephone orders - all major credit & debit cards accepted**

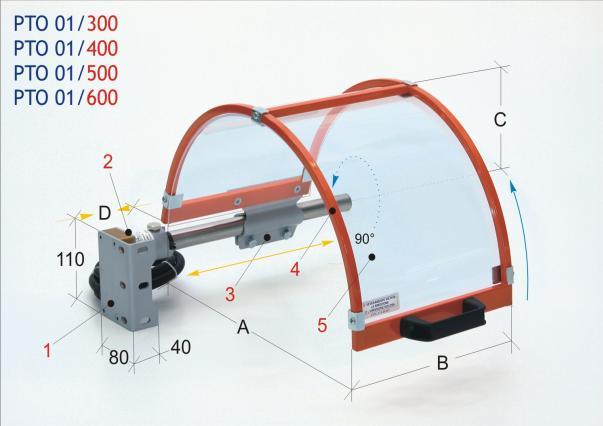

  1. Frontal and lateral anchorage stirrup.
  2. Safety microswitch main box - 90 degree rotation - n.2 NC contacts.
  3. Shield connection clamp with support arm - in pressed steel.
  4. Shield structure in tubular steel.
  5. Thermo-shaped shield - in shockproof and oil-resistant plastic material.

CODE ABCD
PTO 01/300 3002001800-215
PTO 01/400 4002352300-150
PTO 01/500 5002352800-150
PTO 01 /600 6002353300-150
  • Estimated delivery on this item 1-3 working days
  • Postage and packaging £20.00 (UK mainland only)
  • Please contact us for a quote for all deliveries outside of mainland UK
  • **We also accept telephone orders - all major credit & debit cards accepted**
